Primary Socket
  • XingJi
  • China

CZC series primary connector is mainly used as electrical connector of primary circuit in low voltage switchgear set and control equipment, especially suitable for switchgear such as GCK, BFC, GK, etc.

Novel primary connector: CZT8-B-3-100、160、250、400、630A primary plug
primary socket
A novel plug of CZT8 is improved on original CZT5 technology. lmproved contact blade is embedded into the plastic shell to make contact blade and plastic as a whole, so that fixed contact blade could no longer move, improving security. The installation dimensions is the same as the CZT5
Configuration and Mounting hole dimensions diagram for CZT8-B-3-100A、160A、250A、400A、 630A primary plug

low voltage

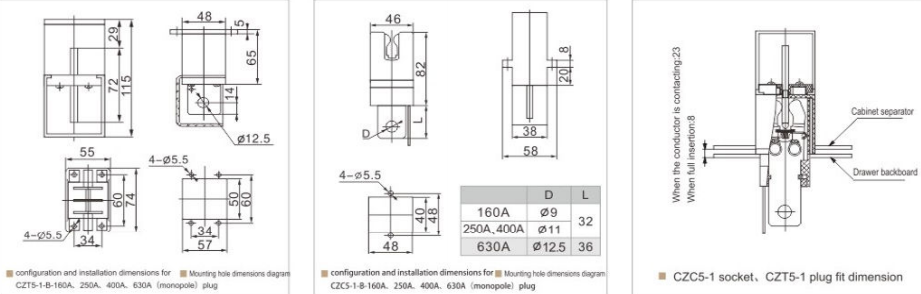

CZC(T)5-1-B monopole primary connector
switchgear
CZC(T)5-1-B monopole primary connector without flap can reach protection level of 1P2X, and conform to the requirements of GB7251.1. It can be combined to meet the needs of any poles number, which is convenient and flexible.
Configuration and Mounting hole dimensions diagram for CZT8-B-3-100A、160A250A、400A、 630A primary plug
primary socket
Primary connector:CZC5-B-4-160A、250A、 400A、 630A one socket
low voltage

a quadrupole socket of CZC5 with added guiding device has solved the defectsexisting in the drawer cabinet without guide rail

CZC5-B-4-160A. 250A. 400A. 630A socket
Configuration and installation dimensions for CZC5-B-4-160A、250A、 400A、 630A socket
switchgear
CZC5 quadrupole shell can be directly used to clamp bus-bar into straightline, and doesn't need other vertical bus-bar clamp(small row support).
CZC5-B-4/6X shell type: installation dimensions and supporting table

primary socket

Quadrupole Primary connector : CZT5-B-4-160A、250A、 400A、 630A plug

switchgear

Configuration and installation dimensions for CZT5-B-4-160A、250A

primary socket
