12KV-24KV (SF6) LBS

    Product Description

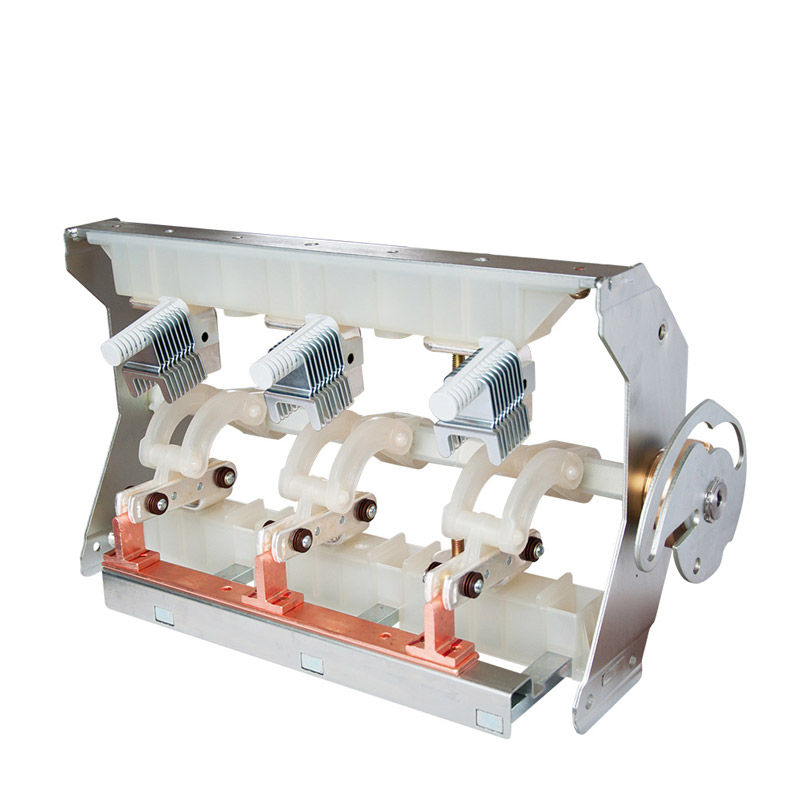

This is 12KV E3 level Load break switch,.

And the design of spring can change force value by adjust the screw position or spring.

Technical Parameter
ITEM UNIT VALUE
Rated  voltage KV 12
Rated current KA 630
Rated peak current KA 62.5
Short-time withstand current KA/SEC 25KA/1SEC
Making capacity of switch and earthing switch KA 62.5
Mechanical endurance-Disconnector TIMES 1000
Mechanical endurance-Earthing TIMES 1000

Electrical endurance-Disconnector(On Rated Cuurent)

TIMES 100
Electrical endurance-Earthing(On short-circuit current) TIMES 10
Electrical endurance-Disconnector(On Rated Cuurent) TIMES 5
Electrical endurance-Earthing(On short-circuit current) TIMES 5



Drawing



For more product details, click to download PDF to view!

Download
